​Solar Farm Grounding Solution | H Steel Mid Clamps (Aluminum)​

Foshan Xuanqing Zhilian Technology Co., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

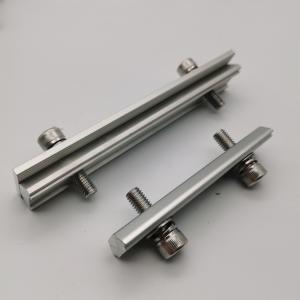

​Solar Farm Grounding Solution | H Steel Mid Clamps (Aluminum)​

  • 1
  • 2
  • 3

Brand Name : XuanQing

Model Number : Roof Clamp,carport clamp,ground brackets clamp

Place of Origin : China

MOQ : 500PCS

Price : Negotiable

Payment Terms : T/T

Supply Ability : 3000000pcs/mon

Delivery Time : 10-15 work days

Packaging Details : Carton Box

Warranty : 1 Year

After-sale Service : Online Technical Support

Project Solution Capability : Graphic Design, Cross Categories Consolidation

Application : Apartment

Design Style : Modern

Type : Solar Panel Mounting Aluminum Rail Connector

Highlight : Aluminum Frame Solar Panel Rail Clamps, PV Mounting Solar Panel Rail Clamps, Apartment Solar Rail Clamps

Contact Now

​Solar Farm Grounding Solution | H Steel Mid Clamps (Aluminum)​

Description

Optimize Grounding Integrity & System Longevity with Aluminum H Steel Mid Clamps​

Specially designed for utility-scale solar farms, these aluminum H Steel Mid Clamps provide a robust, corrosion-resistant solution for securely bonding grounding conductors to H-pile foundations. Installed at the mid-point height of driven H-steel piles, these clamps ensure a low-resistance, permanent connection between the grounding wire (typically bare copper or GEC) and the structural steel pile, integrating it into the site's comprehensive grounding grid. By utilizing high-conductivity aluminum alloy and featuring either tin-plated copper or stainless steel hardware, these clamps deliver excellent electrical performance while resisting galvanic corrosion and harsh environmental conditions. Their heavy-duty, two-piece clamp design offers high mechanical strength and ensures a tight, vibration-resistant grip on the H-pile flange. These clamps are an essential component for meeting grounding safety standards (such as NEC, IEC, UL) and enhancing the lightning protection & fault current dissipation capability of large-scale solar installations, protecting equipment and personnel for decades.

Quick Details

Product Name:​​ H Steel Mid Clamp (for Grounding Systems)

​Material:​​ High-Conductivity Aluminum Alloy (e.g., 6061-T6)

​Application:​​ Solar Farm Grounding - Connection to H-Piles (H-Beams)

​Function:​​ Bonds grounding conductor (bare copper/GEC) to pile & clamps pile at mid-height.

​Installation:​​ Mid-point (typ. 1-2 meters above grade) on driven H-piles.

​Design:​​ Heavy-duty Two-Piece Clamp Design.

Specification

Accessory Name Function Features
Rail Support and fix solar panels High strength and corrosion resistance.
Mid clamp Connect and fix solar panels Made of aluminum alloy, ensuring stability.
Solar clamp Fix solar panels High strength and corrosion resistance.
Connectors Connect various components Improve the stability and reliability of the solar mounting system.
Bases Support the entire system Made of aluminum alloy and corrosion-resistant.
Aluminum nuts Fix various components High strength and corrosion resistance.

​Solar Farm Grounding Solution | H Steel Mid Clamps (Aluminum)​

​Solar Farm Grounding Solution | H Steel Mid Clamps (Aluminum)​

Company Profile

Foshan Xuanqing Company is a company that specializes in manufacturing aluminum accessories for photovoltaic systems. It can customize molds for accessories such as mid clamps and side clamps.

The company has a production base of 4500 square meters and a fully modern production line, including 13 automatic lines, 3 ordinary production lines, and 36 stamping equipment. It has strong production strength. At the same time, Xuanqing Company can conduct product design, sampling, and production according to customers' different needs and provided drawings and samples, meeting personalized product demands. It also has independent mold-opening capabilities with fast mold-opening speed, high mold-opening precision, and a short production cycle.

​Solar Farm Grounding Solution | H Steel Mid Clamps (Aluminum)​

​Solar Farm Grounding Solution | H Steel Mid Clamps (Aluminum)​

Packing & Delivery

​Solar Farm Grounding Solution | H Steel Mid Clamps (Aluminum)​
